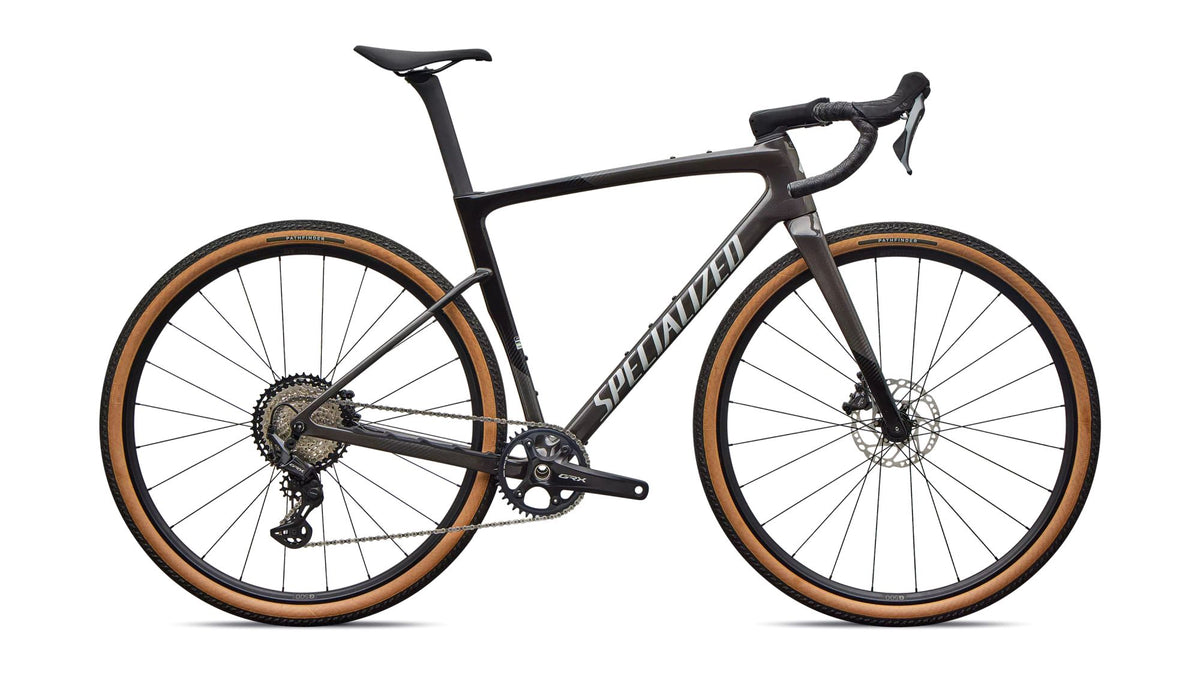

Crux 5 Sport - Shimano GRX 800

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated for real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

Features

• Use - Gravel Racing
• Frame - FACT 10r Carbon: 897 grams
• Wheels - DT G-500
• Bar and Stem - Alloy Bar and Rapide Stem
• Drivetrain - Shimano GRX Mechanical 12-speed
• Weight - 8.94 kg

Key Details

• Use: Gravel Racing
• Frame: FACT 10r Carbon: 897 grams
• Wheels: DT G-500
• Bar and Stem: Alloy Bar and Rapide Stem
• Drivetrain: Shimano GRX Mechanical 12-speed
• Weight: 8.94 kg

Specifications

Frameset
Frame	Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Suspension
Fork	S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
Front Brake	Shimano GRX BR-RX820
Rear Brake	Shimano GRX BR-RX820
Drivetrain
Shift Levers	Shiimano GRX ST-RX820
Rear Derailleur	Shimano GRX RD-RX822-GS, 12-speed
Cassette	Shimano XT CS-M8100, 12-speed, 10-45t
Chain	Shimano XT CN-M8100, 12-speed
Crankset	Shimano GRX FC-RX820, 40t
Bottom Bracket	Shimano Threaded BSA BB
Wheels & Tires
Front Tire	Pathfinder 700x45, Tubeless Ready
Front Wheel	DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Rear Tire	Pathfinder 700x45, Tubeless Ready
Rear Wheel	DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Inner Tubes	700x32-50mm, 40mm Presta valve
Cockpit
Stem	Roval Rapide, alloy, 4 bolt, -6 degrees
Handlebars	Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
Tape	Supacaz Super Sticky Kush
Saddle	Body Geometry Power Sport, steel rails
Seatpost	S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Seat Binder	Integrated Wedge
Weight
Weight	8.94 kg (19 lb, 11.3 oz)
Weight Size	56
