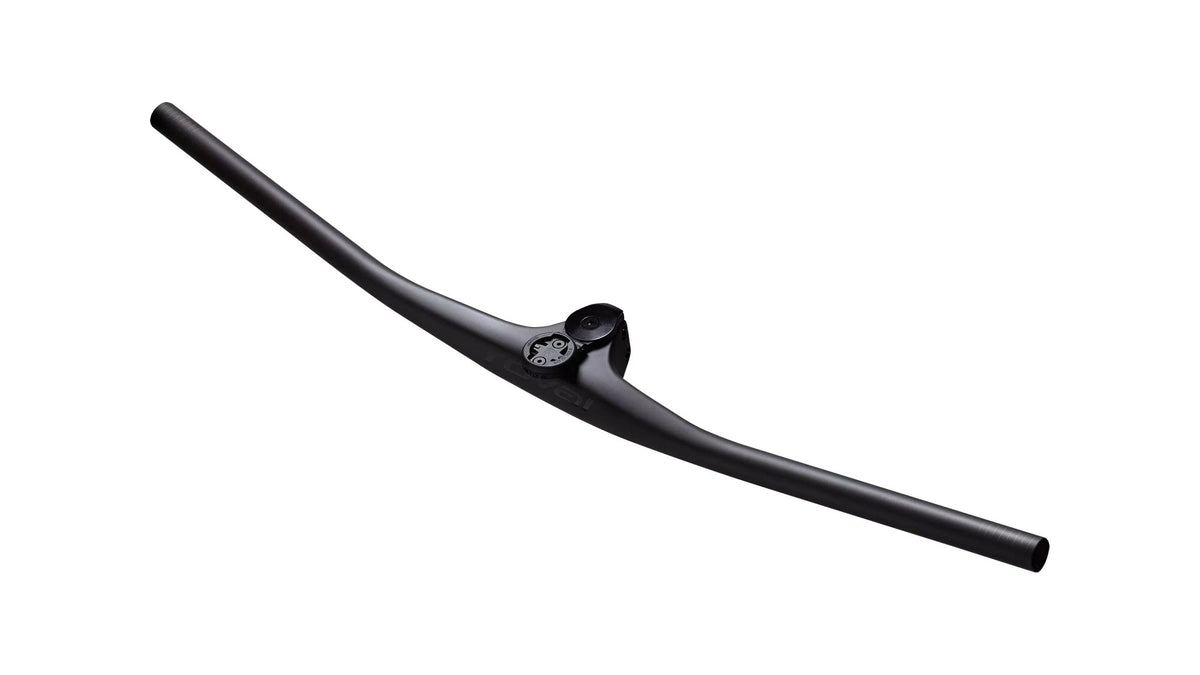

Roval Control Riser Cockpit

The Roval Control Riser Cockpit delivers lightweight precision and tuned compliance for modern XC and trail riders. Made from premium high‑modulus carbon and weighing just 250g, it features a 25mm rise*, 780mm width, 2° up and 8° back sweep, into a sleek, integrated 40, 50, & 60mm stem options. With a 275‑lb weight limit, cut‑to‑fit width, titanium hardware, and lifetime warranty, it's built for fast, confident trail control.
* measured from a 65.5° head

Features

• Use - Trail, Down Country, & XC
• Weight - 250g (50mm)
• Dimensions - Rise: 25mm, Width: 780mm, Upsweep: 2 degrees, Backsweep: 8 degrees, Stem lengths: 40, 50, 60mm
• Material - High-Modulus Carbon Fiber
• Add-ons & Warranty - Life time warranty, Top Cap Computer Mount
• Weight Limit - 275 pounds / 125 kilograms

Key Details

• Use: Trail, Down Country, & XC
• Weight: 250g (50mm)
• Dimensions: Rise: 25mm
  Width: 780mm
  Upsweep: 2 degrees
  Backsweep: 8 degrees
  Stem lengths: 40, 50, 60mm
• Material: High-Modulus Carbon Fiber
• Add-ons & Warranty: Life time warranty
  Top Cap Computer Mount
• Weight limit: 275 pounds / 125 kilograms

Specifications

General
Material	Premium High Modulus Carbon Fiber
Weight	250g (in 50mm x 780mm width)
Use	XC, MTB Trail
Weight Limit	275lbs / 125kg
Warranty	Limited Lifetime Warranty
Bar
Width - End to End	780mm (includes cut marks to customize for rider)
Rise	+25mm (based on 65.5 degree Head Tube Angle)
Up Sweep	2 Degrees
Back Sweep	8 Degrees
Stem
Stem Length	40mm, 50mm, 60mm
Stem Stack Height	42mm
Steer Tube Bolts	Titanium
Steer Tube Bolt Torque	5.0 Nm
Steerer Diameter	1 1/8"
Extras
Add Ons	Top Cap Computer Mount, S254800020
